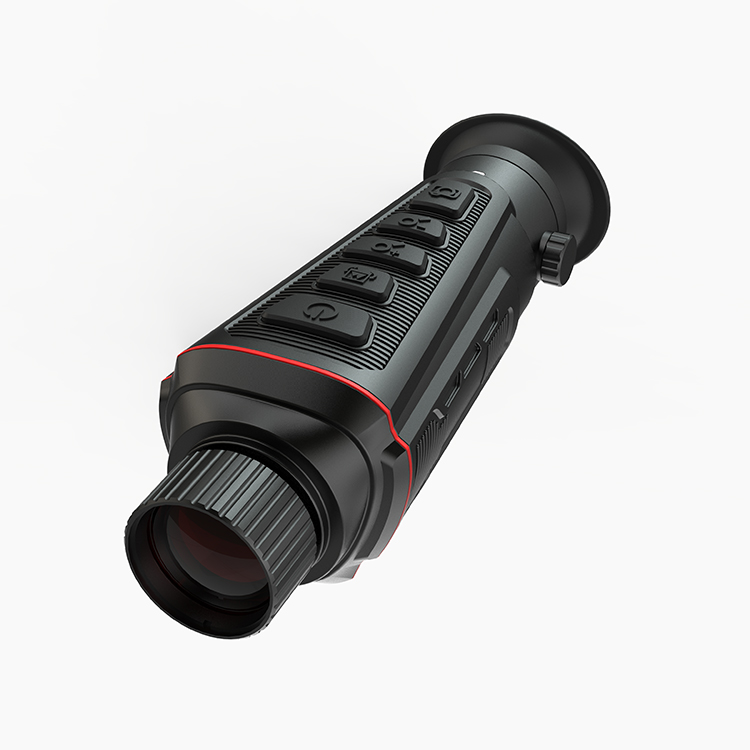

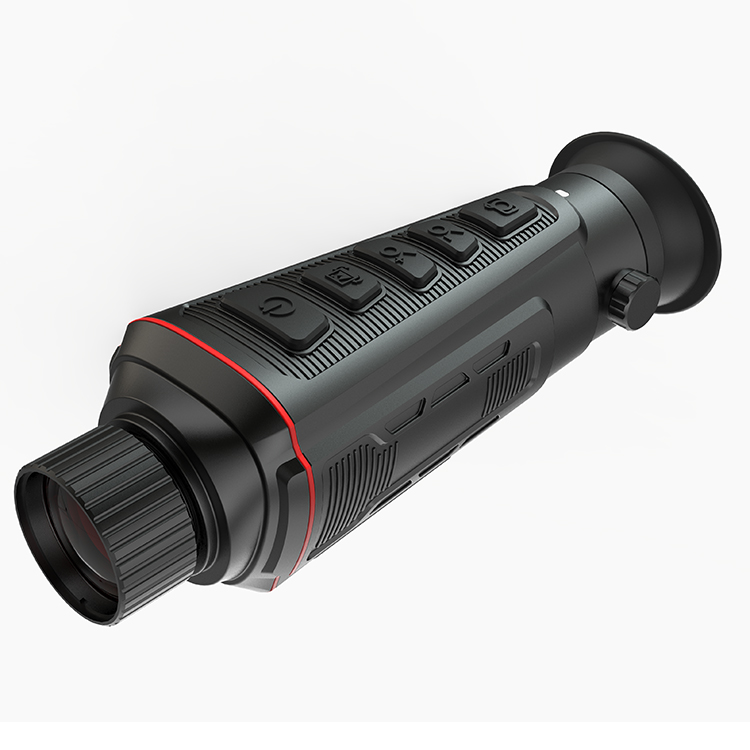

Thermal image monocular LS-TH001
Detector type: uncooled focal plane
Resolution: 384*288 infrared
LCD resolution: 720*540
Focal length: 19mm,25mm,35mm,
Wavelength range: 8um~14um
Field angle: 19.5*14.7,14.9*11.2,10.7*8
Image frequency: 25Hz
Digital zoom: 2X,4X,8X
Palette: red thermal, black thermal, rainbow
Focusing mode: fixed
Image storage: JPG
Battery: built-in rechargeable battery
USB: MICRO USB 2.0
Working hours: 3 hours
Shutdown time: 5 minutes (automatic shutdown time)
Gross weight: 289g
Product size: 186*68mm
Working temperature: 0℃~45℃
Storage temperature: -20℃~60℃
Measurement range: 200 meters
Packages:
1 x Infrared Thermal Imager
1 x Data Cable
1 x US Plug Adapter
1 x User Manual
